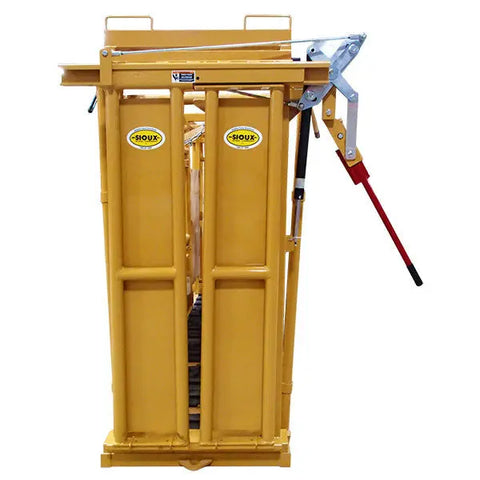

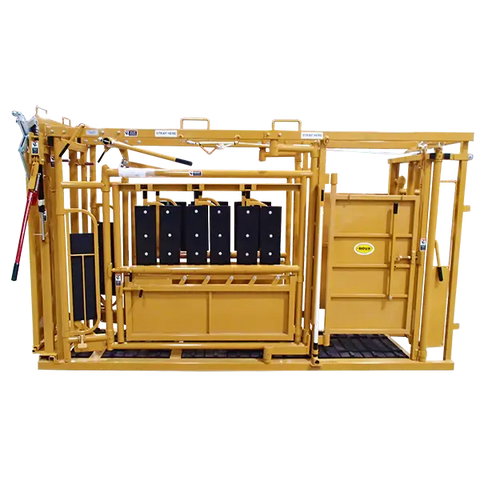

Cattle Squeeze Chute with Manual Head Gate
This cattle chute is designed for efficiency, operator safety, and low-stress handling. Every feature—from the floor to the palpation cage—supports smooth cattle flow and reliable access where it’s needed most.
Handling and Access
-
Both sides of the chute swing fully open and lock securely using slam-latch panels, providing complete access for operators and unrestricted flow for livestock.
-
Oversized injection door allows clear reach for vaccinations and treatments without awkward positioning.
-
Rear vertical slide gate can be mounted on either end of the palpation cage for flexible setup.
-
Progressive bar moves in line with cattle as they step forward, keeping them centered and under control.
Stress Reduction Features
-
Tailgate folds flat against itself, preventing snags or interference.
-
Drop-down doors are equipped with blinders to limit distractions, helping cattle stay calm and focused.
-
The palpation door can be opened with a foot pedal, allowing hands-free operation when working alone.
-
Controls may be mounted on either side of the chute, adaptable to individual facility layouts.
Versatility in Operation
-
For working cows with calves, the squeeze lever can be swung clear even when locked, allowing the entire side to open. Lower doors remain in place, giving access beneath the animal without panel removal.
-
Palpation cage doors are bolt-on and reversible, supporting both left- and right-hand alley configurations.
Flooring and Durability
-

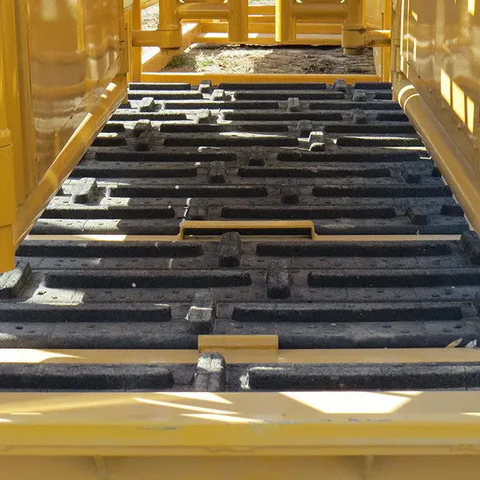

The chute floor is constructed from heavy molded rubber cleats.
-
Molded—not welded—construction prevents rust and reduces long-term wear.
-
Cleats provide secure traction in all directions, reducing slips and maintaining animal stability.
Specifications
-
Total Dimensions: 84” H x 38” W x 12’ L
-
Chute Length: 9’
-
Palpation Cage: 3’
-
Adjustable Inside Width: 29” to 12”
-
Unit Weight: 2,150 lbs
-
Grease Zerks: 40
-
Floor: Molded cleated rubber (non-rusting)
-
Panels: Slam-latch; both sides open fully
-
Controls: Mountable on either side
-
Rear Gate: Vertical slide; reversible placement
-
Palpation Cage Doors: Bolt-on, reversible
Summary
This cattle squeeze chute combines a wide-opening frame, multiple access points, and heavy-duty flooring with adaptable features like reversible palpation cage doors and mountable controls. The result is a chute that reduces stress for livestock, simplifies solo operation, and withstands long-term use in demanding conditions.
