Victory Feeder Panels | Sioux Steel

Victory Feeder Panels | Sioux Steel

by Sioux Steel
$283.86 - $566.81
$283.86
$283.86 - $566.81
$283.86

Delivery time

This item requires additional freight charges due to its size—shipping will be calculated separately. You can place your order now, and a team member will follow up with shipping details, or feel free to contact us beforehand via chat, phone, email, or our Contact Us page. Most orders arrive within 2 weeks, but if the item is out of stock and needs to be built, delivery may take 4 to 6 weeks. For more info, check the Shipping tab in the table below.

Want to know the delivery time? Just drop us a message in live chat or call us at+1 (218) 402-6816.

If you're looking for a feeder panel that keeps cattle calm, feed off the ground, and stress out of your day—this is it.

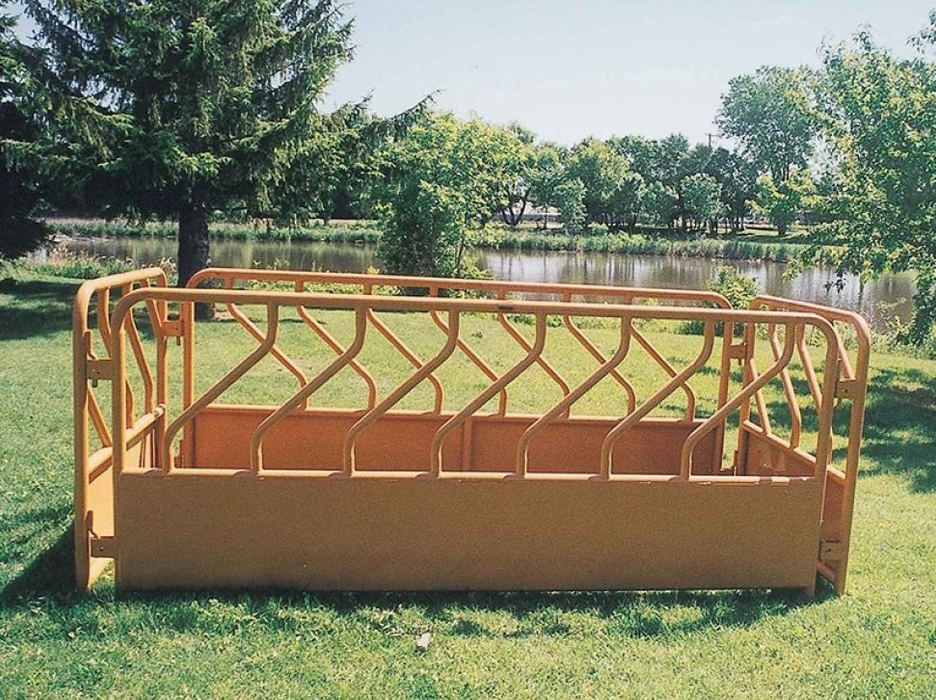

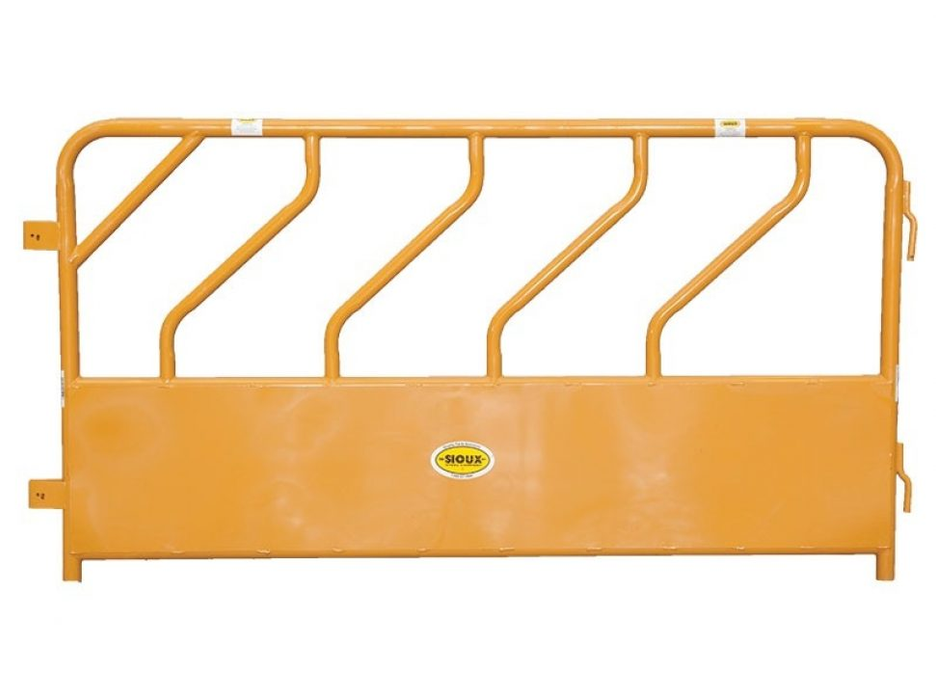

The Victory Z-Bar Feeder Panel is built for organized, efficient feeding. Each panel comes with angled Z slant bars and designated feed openings, so animals line up where they should and stay in their lanes. No fighting, no climbing, and way less feed wasted. It’s cleaner, safer, and easier on everyone—just how feeding should be.

Each panel is made from 2" diameter, 16-gauge high-tensile steel tubing, rated at 58,000 PSI. That’s serious strength. Whether they’re nudging for a better spot or giving it a full-body shove, this thing holds up.

Down low, a 16-gauge kick panel runs 22" high along the bottom. It adds reinforcement exactly where it’s needed—where hooves strike, hay piles up, and things get messy. It protects the frame, keeps its shape, and gives you one less thing to worry about.

The powder-coated prairie gold finish isn’t just about looks. It’s baked on to resist rust, even through wet seasons and long winters. These panels won’t flake, chip, or peel when the pressure’s on. They just keep showing up.

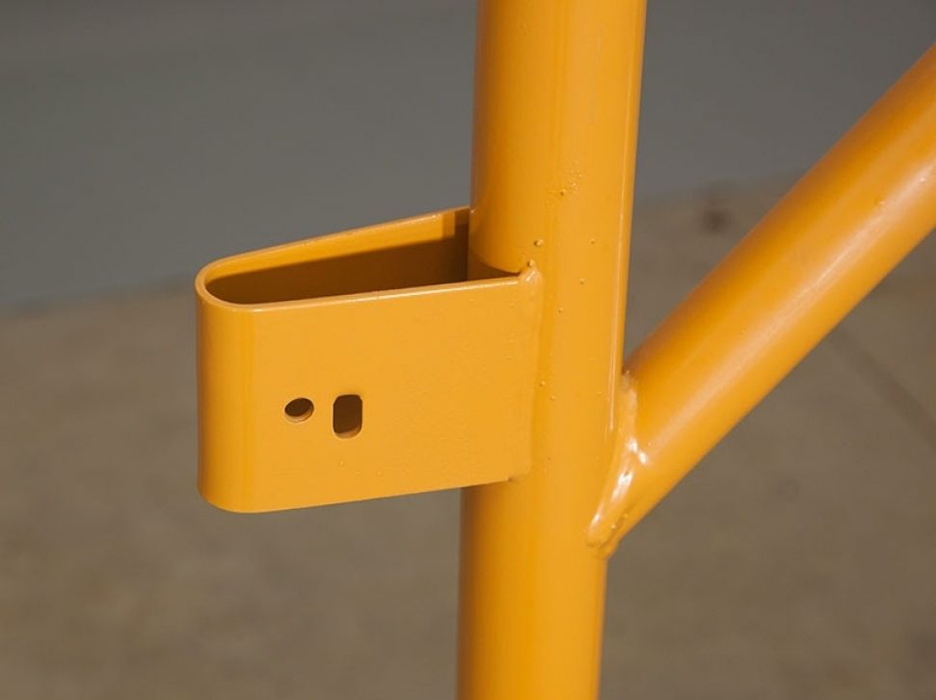

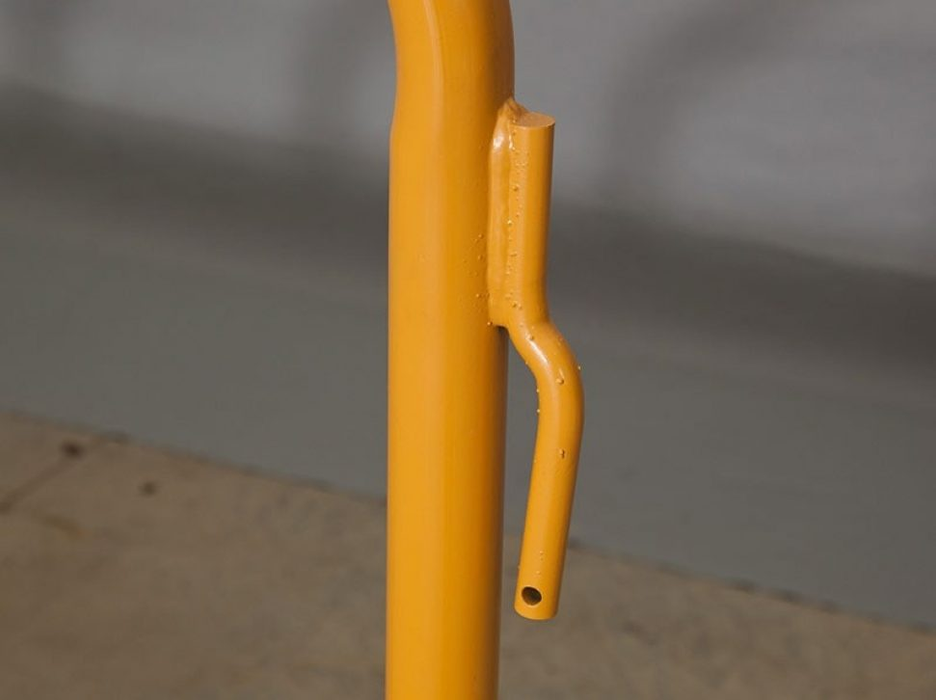

The setup’s a breeze, too. Pin-and-loop connectors let you lock in clean lines, connect to existing panels, or adjust your layout on the fly. Build your bunk the way you want it—with feeder panels that fit your operation, not the other way around.

Panels come in lengths from 4' to 12', each with 3 to 7 feeding slots depending on size. So whether you’re feeding a few head or a full alley, you can scale your feed space without overbuilding.

Victory Z-Bar Feeder Panels are made to work hard, last long, and keep your feeding operation running smooth—no fuss, no frustration.

SPECIFICATIONS

Feature Description
Panel Height 50"
Kick Panel Height 22"
Tubing Size 2" diameter, 16-gauge
Steel Strength 58,000 PSI high-tensile
Finish Prairie gold powder coat
Feed Bar Design Angled Z slant bars
Kick Panel 16-gauge steel reinforcement
Connectors Pin and loop
Feed Openings 3–7 depending on panel length
Length Options 4' to 12' (actual length is 5" shorter)
Warranty 3-year structural warranty

SIZING OPTIONS

Product # Description Feed Openings Weight
S227875 4' Z-Bar Feeder Panel 3 openings 57 lbs
S227876 6' Z-Bar Feeder Panel 4 openings 73 lbs
S227877 8' Z-Bar Feeder Panel 5 openings 86 lbs
S227878 10' Z-Bar Feeder Panel 6 openings 104 lbs
S227879 12' Z-Bar Feeder Panel 7 openings 122 lbs

SHIPPING

Please note that shipping is not included for this product. Due to its size and weight, shipping costs are calculated individually based on your location and delivery requirements.

Our friendly team will contact you after your order is placed to provide a personalized shipping quote.
If you'd like to know the cost beforehand, feel free to reach out for a shipping estimate before placing your order.

Estimated Delivery Time:

  • If the product is in stock, delivery typically takes up to 3 weeks.

  • If the product requires production, delivery may take closer to 6 weeks.

We appreciate your patience and are here to ensure everything goes smoothly.

Contact Information:

Phone: +1 (218) 402-6816
Email: sales@prairiestormequipment.com
