Calving Pen | Sioux Steel

Calving Pen | Sioux Steel

by Sioux Steel
$6,692.32 - $6,692.32
$6,692.32
$6,692.32 - $6,692.32
$6,692.32

Delivery time

This item requires additional freight charges due to its size—shipping will be calculated separately.You can place your order now, and a team member will follow up with shipping details, or feel free to contact us beforehand via chat, phone, email, or our Contact Us page. Most orders arrive within 2 weeks, but if the item is out of stock and needs to be built, delivery may take 4 to 6 weeks. For more info, check the Shipping tab in the table below.

If you're looking for a calving pen that puts you in control without slowing you down—this is it.

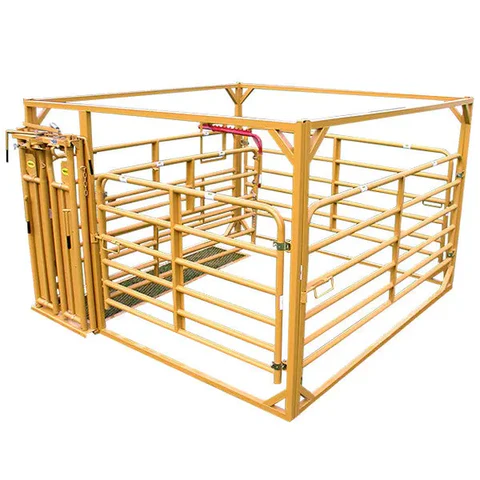

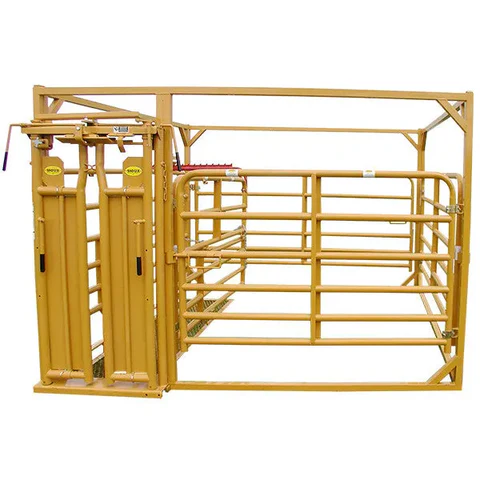

The Sioux Steel Calving Pen Care Center is built for one job: getting calves on the ground safely while keeping cows calm and handlers out of harm’s way. With all-direction swing gates, an overhead rope release ratchet latch, and a layout that works from any angle, this calving pen is your new best friend during calving season.

This isn’t some one-size-fits-all system. It’s modular, so you can add panels when your herd grows. It’s heavy-duty, made from 50,000 PSI high-tensile steel with reinforced corners and welds that don’t flinch. And it’s efficient—with an auto head gate, squeeze gate, anchor mat, and flip-up nursing panel, everything’s where it needs to be when the pressure’s on.

The squeeze gate locks in place and tightens in controlled steps. The 7' gate turns into a full 10' x 10' space when you need it. And that flip-up panel? Makes nursing, tagging, or vet checks easier without crawling into the calving pen.

Setup is fast and clean thanks to connector clips—no bolts, no wasted time. The 2' x 9' anchor mat keeps the whole system stable, even when animals shift and pull. It's built smart and solid, so you can work fast, work safe, and protect your investment.

Bottom line? This isn’t just a calving pen. It’s a full-on care center for the most critical hours in your herd’s season. And once you’ve used it, you won’t calve without it again.

SPECIFICATIONS

Feature Description
Product Name Calving Pen Care Center
Manufacturer Sioux Steel
Material 50,000 PSI high-tensile 16-gauge steel
Dimensions (Pen Area) Adjustable to 10' x 10'
Headgate Panel 10' with auto headgate
Squeeze Gate 7' gate with ratchet latch and rope release
Nursing Panel Flip-up quarter panel for outside access
Assembly System 8 Connector clips (no bolts needed)
Anchor Mat 2' x 9', 9-gauge steel with reinforced edge
System Includes Full panel set, headgate, mat, squeeze gate, nursing panel, latch, clips

SHIPPING

Please note that shipping is not included for this product. Due to its size and weight, shipping costs are calculated individually based on your location and delivery requirements.

Our friendly team will contact you after your order is placed to provide a personalized shipping quote.
If you'd like to know the cost beforehand, feel free to reach out for a shipping estimate before placing your order.

Estimated Delivery Time:

  • If the product is in stock, delivery typically takes up to 3 weeks.

  • If the product requires production, delivery may take closer to 6 weeks.

We appreciate your patience and are here to ensure everything goes smoothly.

Contact Information:

Phone: +1 (218) 402-6816
Email: sales@prairiestormequipment.com

VIDEOS

Watch a product walkthrough

Calving Pen FAQs

How do calving pens reduce disease and improve calf survival?
  • By isolating the cow before and after birth, pens reduce calf exposure to pathogens, particularly if cleaned and disinfected after each use. Individual pens have been linked to lower mortality rates in some studies.
When should I move a cow to the calving pen?
  • Timing varies: some producers move cows days before the expected calving date, while others wait for clear signs of labor, aiming to balance hygiene with minimizing cow stress from confinement.
How do I maintain hygiene in calving pens?
  • Remove manure, placenta, and bedding after each use; disinfect floors and replace with fresh bedding before the next cow enters.
Should I use individual or group calving pens?

Individual pens allow isolation, better hygiene, monitoring, and control, while group pens can be more space- and labor-efficient for large herds. Each option has advantages and disadvantages, and management practices are key to success regardless of the system.

What flooring and bedding are best?

Non-slip, well-drained surfaces—such as sand, clay, or dirt—are recommended. Fresh, clean bedding at least 6 inches deep is essential for hygiene and calf comfort.
